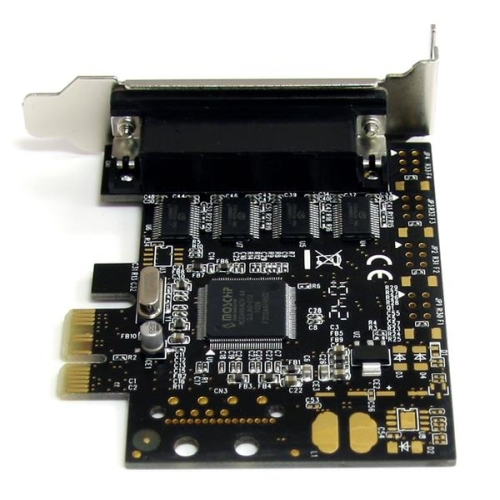

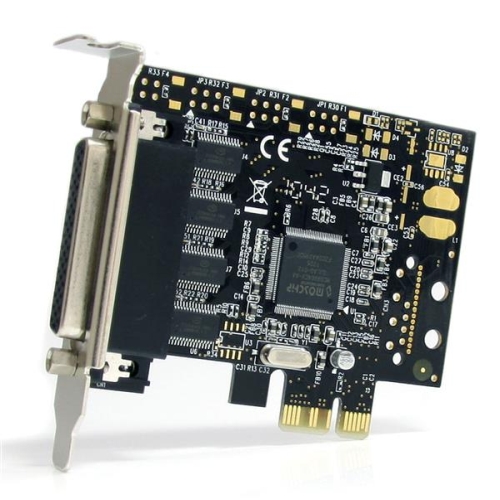

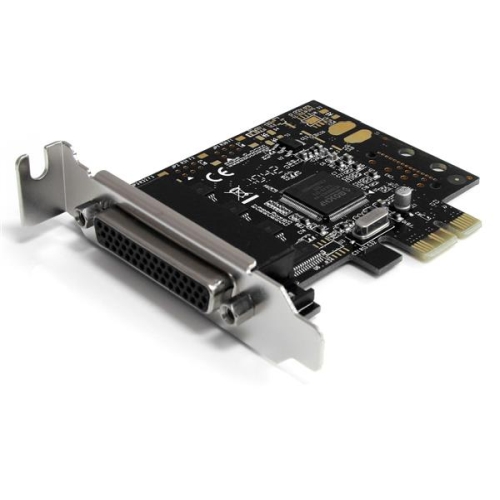

4 Port RS232 PCI Express Serial Card w/ Breakout Cable

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS.

This product is a replacement for our PEX4S552B card.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

• Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
• Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications

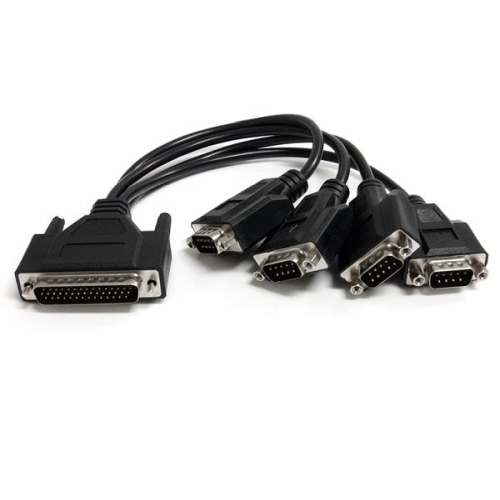

• Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system

• Native single chip design

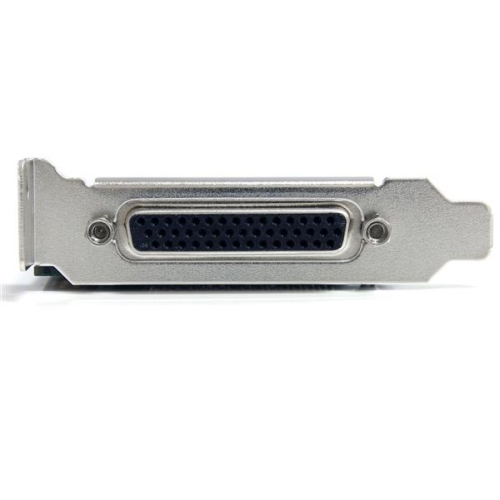

• Includes a full profile and low profile/half-height bracket
• On chip 256-byte depth FIFO in transmit/receive path of each port
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Supports hardware and software flow control
• Supports data transfer rates up to 250Kbps on each port
• Compliant with PCI Express base specifications revision 1.0a
• Automated out-of-band flow control using CTS/RTS and DSR/DTR
