StarTech PEX2PECP2 2 Port PCIe Parallel Adapter – IEEE1284 w/Low Profile Bracket
SKU: AA84167
Model Name: PEX2PECP2
Availability:
IN STOCK
Sale Price: $165.70 inc. GST
Quantity:

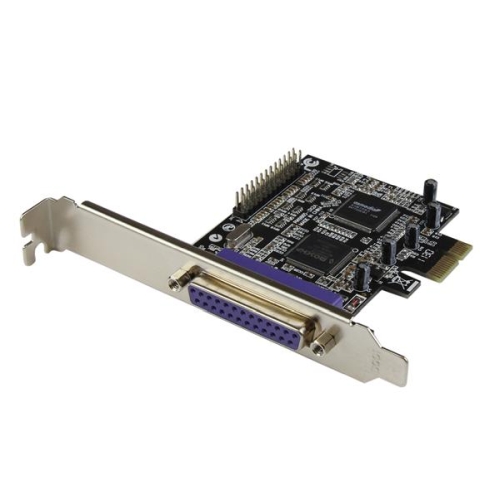

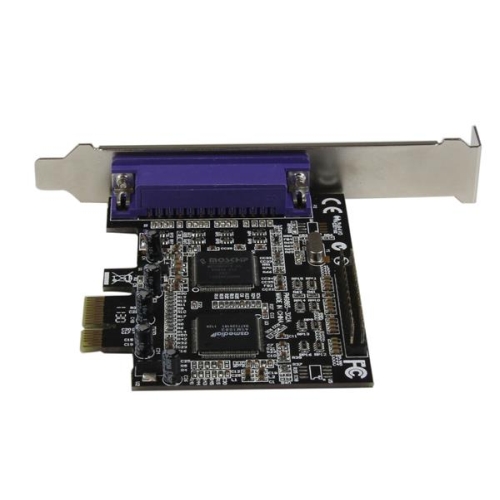

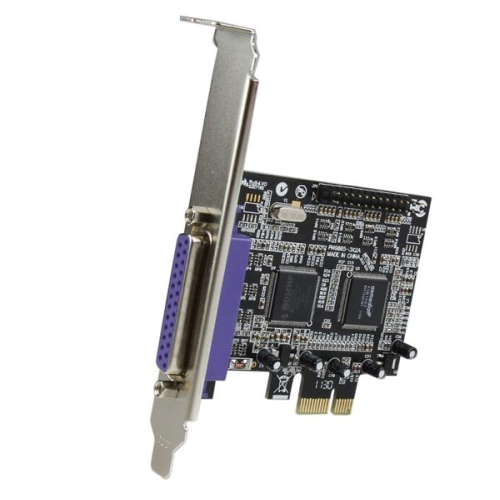

2 Port PCI Express / PCI-e Parallel Adapter Card – IEEE 1284 with Low Profile Bracket

The PEX2PECP2 2 Port PCI Express Parallel Adapter Card - EPP/ECP/SPP/PS2 parallel card adds two IEEE 1284 parallel ports to your PC, with support for parallel data communication at speeds of up to 1.5 Mbps.

This high performance 2 Port PCI Express parallel card adds 2 DB25 parallel ports, perfect for connecting printers, scanners, memory card readers, bar code scanners and more. With the added convenience of plug-and-play capability, installing the parallel adapter card is hassle-free. The PCIe Parallel card also includes both standard and half-height/low profile mounting brackets for compatibility with almost any system form factor.

Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

The StarTech.com Advantage
  • Standard and low profile bracket included allowing install into almost any system
  • Use existing parallel devices with PCI Express systems saving the cost and hassle of upgrading peripherals to work with newer systems
  • Supports SPP, EPP, ECP and PS/2 communication modes for maximum compatibility with your parallel peripherals
Features
  • Supports Standard Parallel Port(SPP), Enhanced Parallel Port(EPP), Enhanced Capability Port(ECP) and PS/2
  • Data transfer rate up to 1.5 Mbps
  • Standard and low-profile brackets included
Warranty Information
Warranty Lifetime
Hardware
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID ASIX/MosChip - MCS9865
Interface Parallel
Port Style Integrated on Card
Ports 2
Performance
Maximum Data Transfer Rate 1.5 Mbps
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 2 - DB-25 (25 pin, D-Sub) Female
Software
OS Compatibility Windows 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016
Linux 3.5.x to 4.4.x LTS Versions only
Environmental
Humidity 5~85% RH, Non-condensing
Operating Temperature 0°C to 40°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Product Height 3.4 in [86 mm]
Product Length 4.8 in [121 mm]
Product Weight 1.8 oz [51 g]
Product Width 0.7 in [19 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]

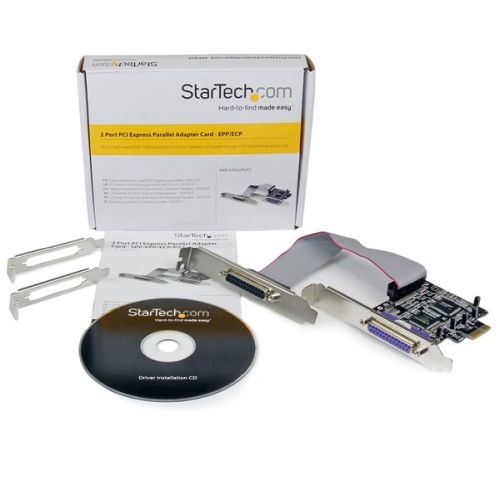

What's in the Box
Included in Package 1 - 2 Port PCIe Parallel Card
  2 - Low Profile Brackets
  1 - Driver CD
  1 - Instruction Manual
