StarTech PEX1P2 1-Port PCI Express to Parallel DB25 Adapter SPP/Byte/Nibble/ECP
SKU: WIM0001
Model Name: PEX1P2
Availability:
IN STOCK
Sale Price: $69.50 inc. GST
Quantity:

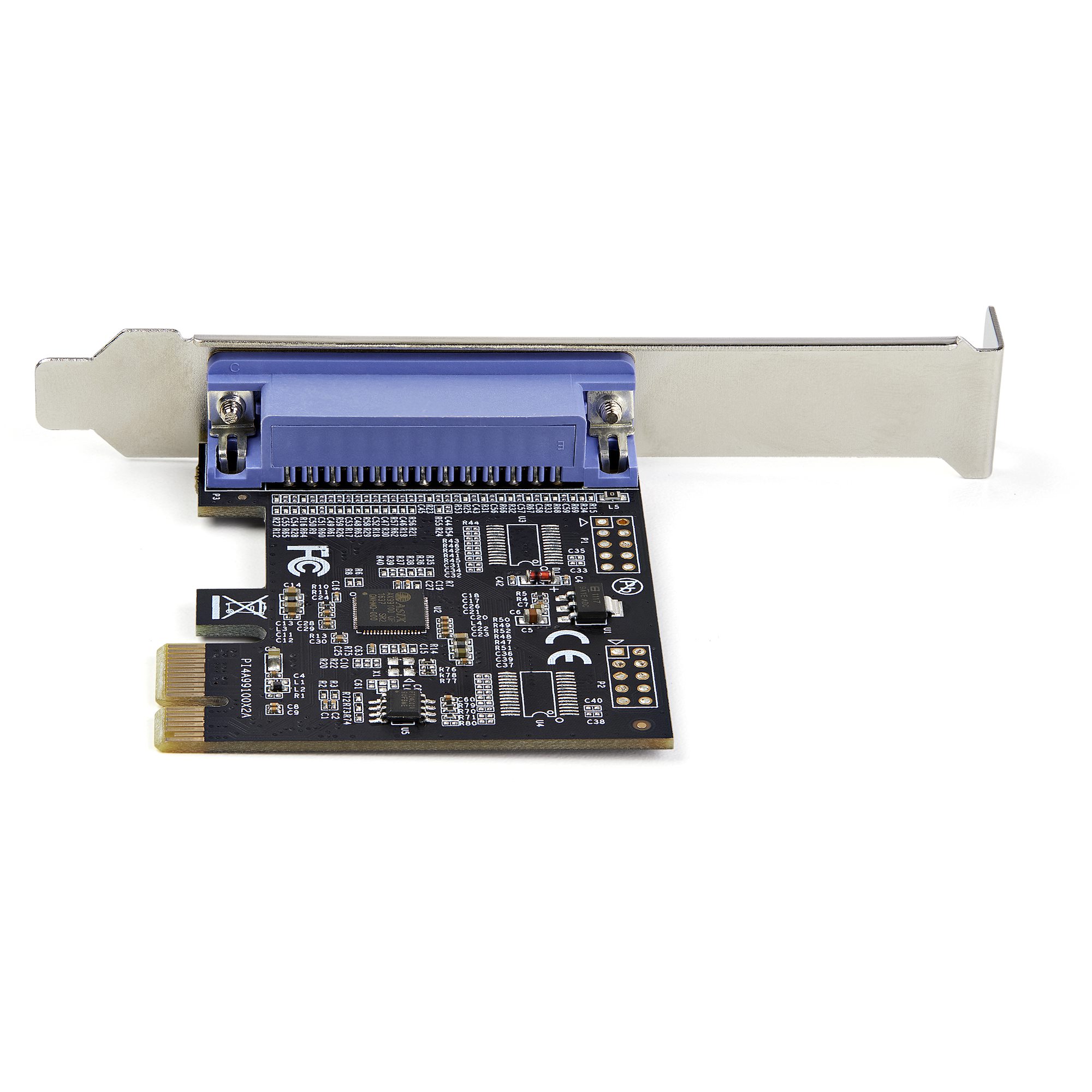

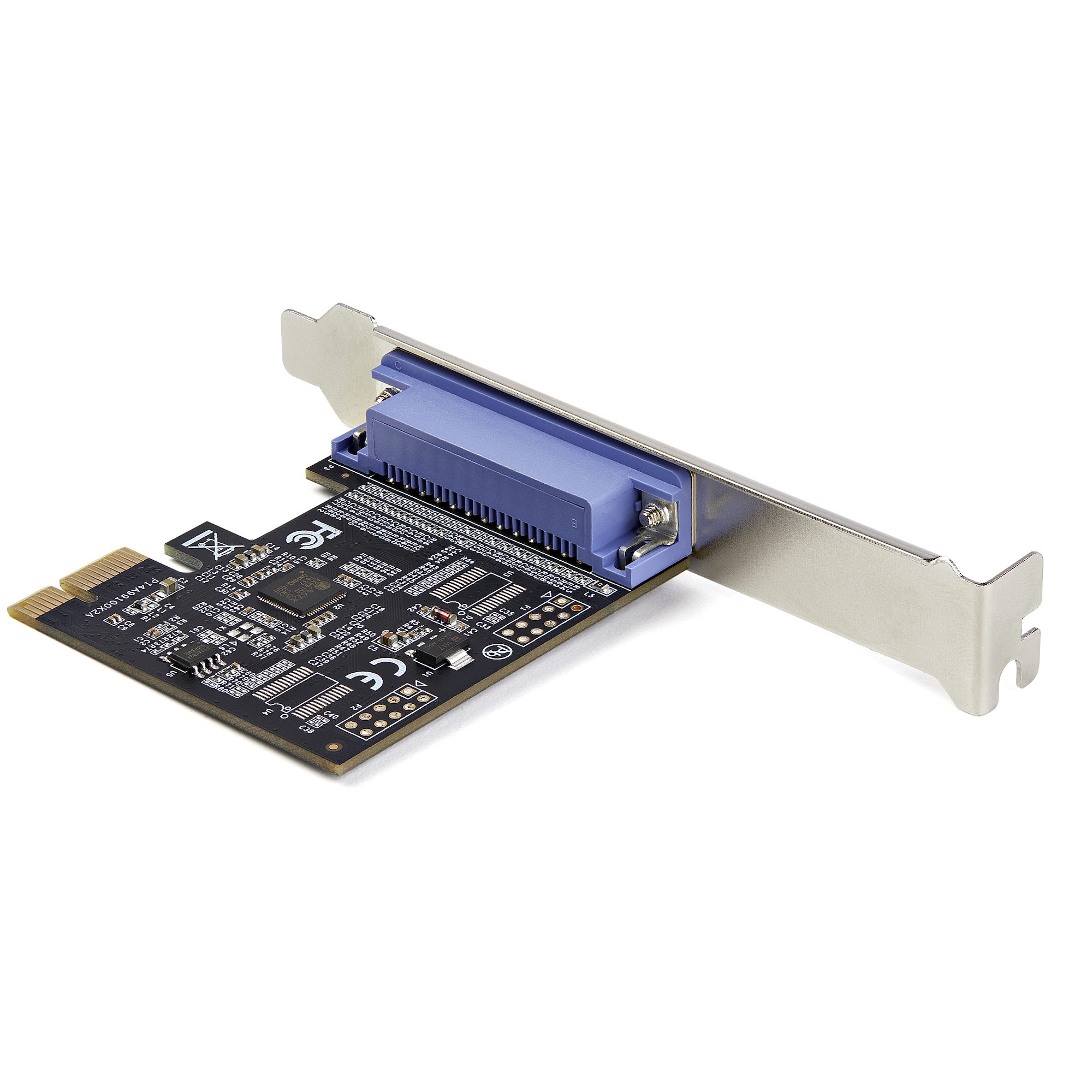

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.

Adds a Parallel Port to Your Desktop Computer

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.

Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).

PEX1P2 is backed by a StarTech.com 2-year warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years

Applications

  • Connect printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes to your computer
  • Use in factories to control or automate equipment

Compatibility

Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.x and up - LTS Versions only

Specifications

Warranty Information
  • Warranty: 2 Years
Connector(s)
  • Connector Type(s): 1 - PCI Express x1

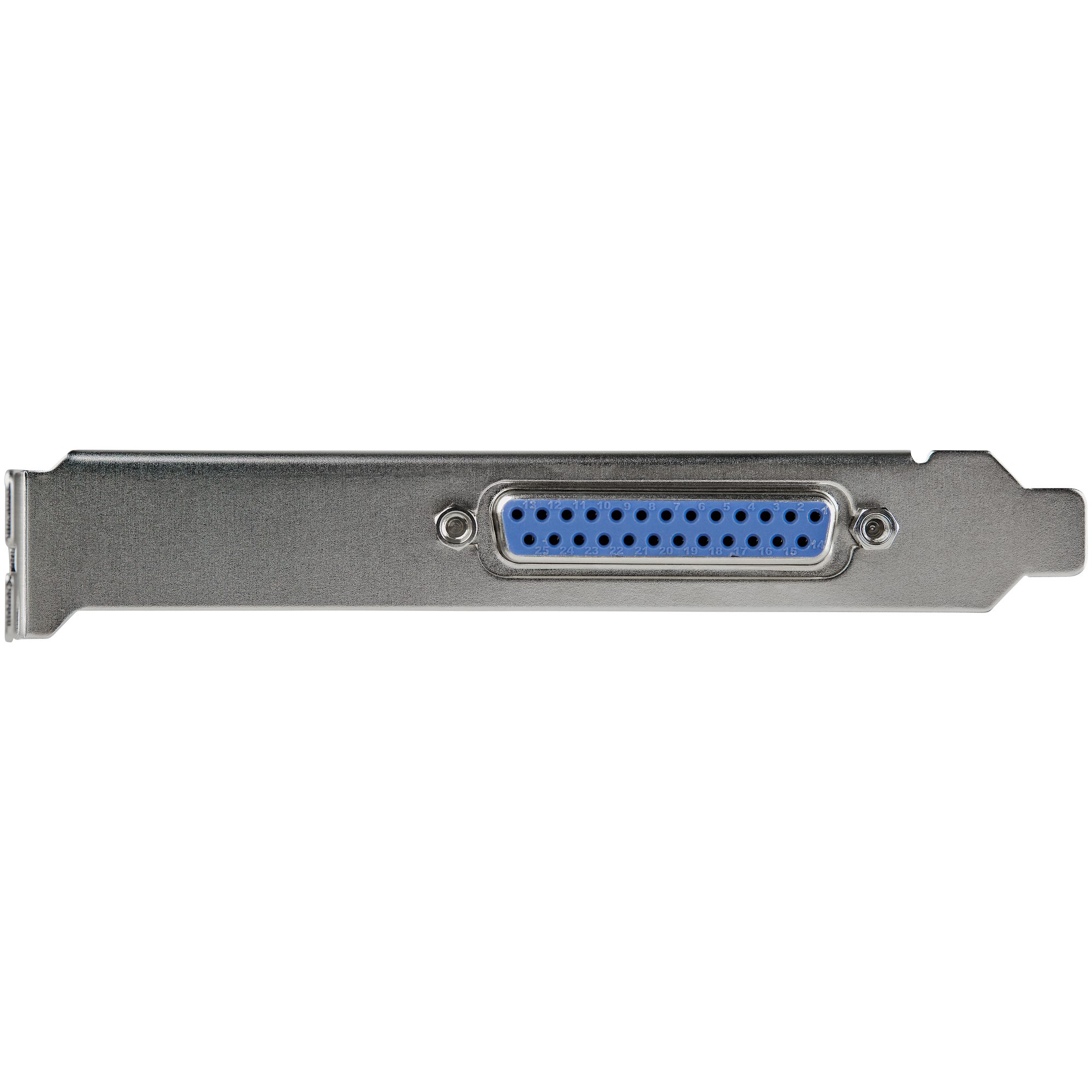

  • External Ports: 1 - DB-25 (25 pin, D-Sub)
Environmental
  • Operating Temperature: 5°C to 50°C (41°F to 122°F)
  • Storage Temperature: 20°C to 60°C (68°F to 140°F)
  • Humidity: 40%~80% RH
Hardware
  • Ports: 1
  • Interface: Parallel
  • Bus Type: PCI Express
  • Card Type: Standard Profile (LP bracket incl.)
  • Port Style: Integrated on Card
  • Industry Standards: PCI Express 2.0 / IEEE 1284
  • Chipset ID: Asix - AX99100
Packaging Information
  • Package Height: 1.5 in [3.7 cm]
  • Package Length: 5.8 in [14.7 cm]
  • Shipping (Package) Weight: 4.7 oz [134.0 g]
  • Package Width: 8.4 in [21.4 cm]
  • Package Quantity: 1
Performance
  • Maximum Data Transfer Rate: 2.5 Mbps
  • General Specifications: Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, and ECP (Extended Capabilities Port)
  • MTBF: 958,000 hours
Physical Characteristics
  • Color: Black
  • Product Height: 0.7 in [1.8 cm]
  • Product Length: 4.7 in [12.0 cm]
  • Weight of Product: 1.6 oz [45.0 g]
  • Product Width: 2.9 in [7.3 cm]
Power
  • Input Voltage: 12V DC
  • Output Voltage: 12V DC
Software
  • OS Compatibility:
  • Windows® 7, 8, 8.1, 10, 11
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Linux 2.6.x and up - LTS Versions only
What's in the Box
Included in Package
  • 1 - Quick-Start Guide
  • 1 - PCI Express Parallel Card
  • 1 - Full Profile Bracket (Installed)
  • 1 - Low Profile Bracket

Compliance & Certifications

RoHS, CE, FC, WEEE, RCM
