The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems

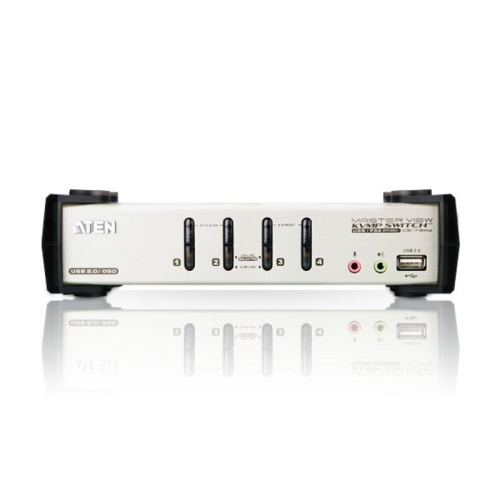

- Console audio ports on front panel for easy access - ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers
Package Contents
- 1x 4-Port USB 2.0 KVMP™ Switch
- 2 x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
- 2 x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
- 2x OSD/Hotkey Stickers
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x User Instructions
| Computer Connections |
4 |
| Port Selection |
Hotkey, Pushbutton, OSD, Mouse |
| Connectors |
| Console Ports |
2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink) |

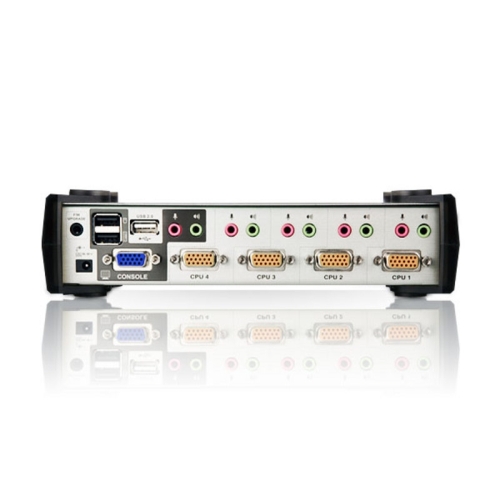

| KVM Ports |
4 x SPHD-15 Female (Yellow)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade |
1 x 4-conductor 3.5mm Jack (Black) |
| Power |
1 x DC Jack |
| USB Hub |
2 x USB Type A Female (White) |
| Switches |
| Selected |
4 x Pushbutton |
| LEDs |
| Online / Selected |
4 (Orange) |
| USB Link |
4 (Green) |
| Emulation |
| Keyboard / Mouse |
PS/2; USB |
| Video |
2048 x 1536 @ 60Hz; DDC2B |
| Scan Interval |
1-255 Seconds (Default: 5 sec.) |
| Power Consumption |
DC5.3V, 2.8W |
| Environmental |
| Operating Temperature |
0-50°C |
| Storage Temperature |
-20-60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
0.78 kg ( 1.72 lb ) |
| Dimensions (L x W x H) |
21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
