ATEN CS-1764A 4-Port USB DVI/Audio KVMP Switch
SKU: PJ11081
Model Name: CS-1764A
Availability:
IN STOCK
Sale Price: $326.20 inc. GST
Quantity:

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
  • One USB console controls four DVI computers and two additional USB 2.0 devices
  • 2-port USB 2.0 hub built in
  • Fully compliant with the USB 2.0 specification

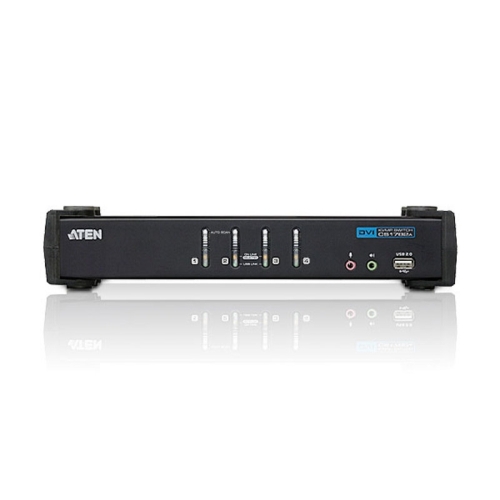

  • Computer selection via front panel pushbuttons and hotkeys
  • Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Superior video quality - 1920 x 1200, 60Hz; DDC2B
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support - fully compliant with the DVI specifications
  • HDCP compliant
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Sun /Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable via USB

    * 1. PC keyboard combinations emulate Sun/Mac keyboards

    2. Sun/Mac keyboards only work with their own computers

Package Contents

  • 1x CS1764A USB 2.0 DVI KVMP™ Switch
  • 4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
  • 1x Power Adapter
  • 1x User Instructions
Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse

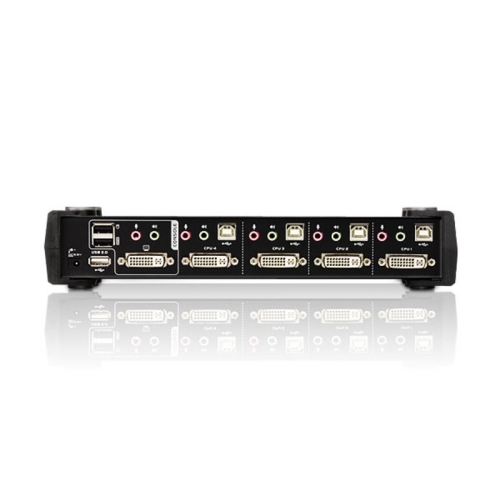

Connectors
Console Ports 2 x USB Type A Female (White; front panel)
1 x DVI-I Female (White)
2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel)
2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
KVM Ports 4 x USB Type B Female (White)
4 x DVI-I Female (White)
4 x Mini Stereo Jack Female (Green)
4 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack
USB Hub USB Hub
Switches
Selected 4 x Pushbutton
LEDs
USB Link 4 (Green)
On Line /Selected 4 (Orange)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200@ 60Hz; DDC2B
Scan Interval 1–99 Seconds (Default: 5 sec.)
Power Consumption DC5.3V, 10.7W
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.94 kg ( 2.07 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
