ATEN CS-1794 4-Port USB HDMI/Audio KVMP Switch
SKU: PJ11075
Model Name: CS-1794
Availability:
IN STOCK
Sale Price: $398.80 inc. GST
Quantity:

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.

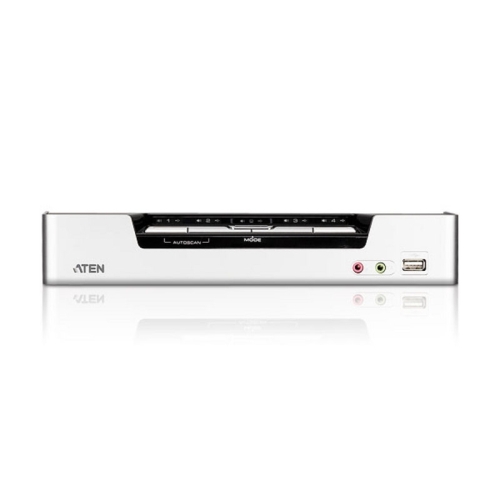

The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

  • 4-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls four HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable

    * 1. PC keyboard combinations emulate Mac Keyboards
       2. Mac keyboards only work with their own computers

Package Contents

  • 1x CS1794 USB 2.0 HDMI KVMP™ Switch
  • 4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions
Computer Connections 4
Port Selection Hotkey, Pushbutton
Connectors

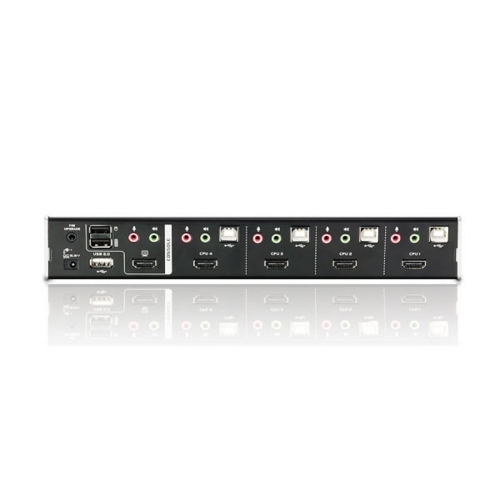

Console Ports 2 x USB Type A Female (Black; rear panel)
1 x HDMI Type A Female (Black)
2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports 4 x USB Type B Female (White)
4 x HDMI Type A Female (Black)
4 x Mini Stereo Jack Female (Green)
4 x Mini Stereo Jack Female (Pink)
Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel)
Switches
Selected 5 x Pushbutton
LEDs
Audio 5 (Green)
KVM 5 (Orange)
USB 5 (Green)
Emulation
Keyboard / Mouse USB
Video 1080p / 1920 x 1200 (DVI)
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC 5.3 V, 4.8 W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.53 kg ( 1.17 lb )
Dimensions (L x W x H) 26.23 x 7.68 x 4.40 cm
(10.33 x 3.02 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
