With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
- 2-port HDMI USB 2.0 KVMP™ Switch

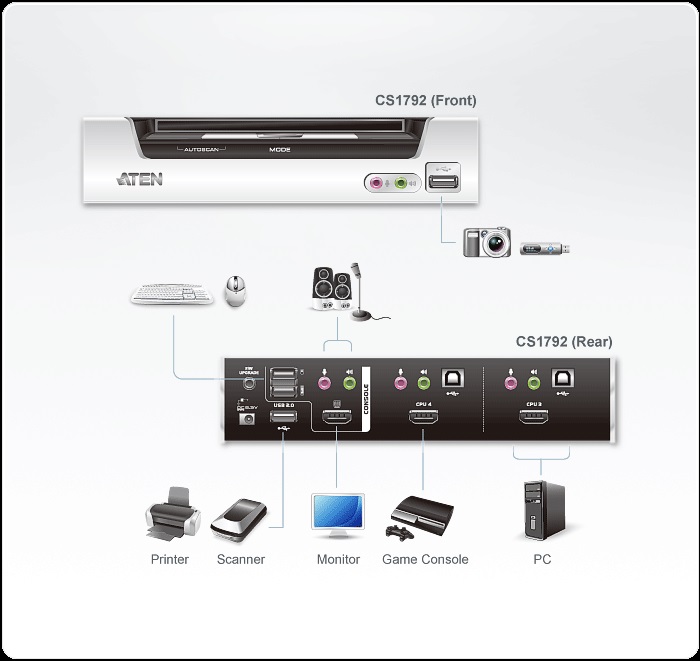

- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers
Package Contents
- 1x CS1792 USB 2.0 HDMI KVMP™ Switch
- 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x User Instructions
Specifications:
| Computer Connections |
2 |
| Port Selection |
Hotkey, Pushbutton |
| Connectors |

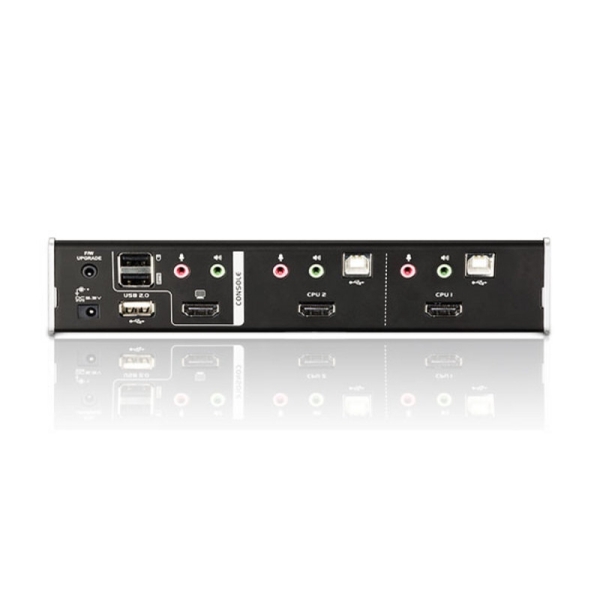

| Console Ports |
2 x USB Type A Female (Black; rear panel)
1 x HDMI Type A Female (Black)
2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) |
| KVM Ports |
2 x USB Type B Female (White)
2 x HDMI Type A Female (Black)
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink) |
| Firmware Upgrade |
1 x 4-conductor 3.5mm Jack (Black) |
| Power |
1 x DC Jack |
| USB Hub |
2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) |
| Switches |
| Selected |
3 x Pushbutton |
| LEDs |
| Audio |
3 (Green) |
| KVM |
3 (Orange) |
| USB |
3 (Green) |
| Emulation |
| Keyboard / Mouse |
USB |
| Video |
1080p / 1920 x 1200 (DVI) |
| Scan Interval |
1-99 Seconds (Default: 5 sec.) |
| Power Consumption |
DC 5.3 V, 3.2 W |
| Environmental |
| Operating Temperature |
0-50°C |
| Storage Temperature |
-20-60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal, Plastic |
| Weight |
0.42 kg ( 0.93 lb ) |
| Dimensions (L x W x H) |
20.63 x 7.24 x 4.40 cm
(8.12 x 2.85 x 1.73 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
