StarTech DP2HDS DisplayPort to HDMI Active Video & Audio Adapter Converter
|
||||||||||||
The DP2HDS Adapter converts DisplayPort to HDMI® with audio pass-through support, enabling you to connect a desktop or laptop computer that is equipped with DisplayPort A/V output to an HDMI® monitor, projector, or display.
Unlike a passive adapter, the DP2HDS actively converts single mode and dual mode DisplayPort output, which is ideal for graphics cards that do not output dual mode/multi-mode (DP++) signals, such as ATI™ Eyefinity cards.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Active or Passive Adapter | Active |
| Adapter Style | Adapter |
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | HDCP DisplayPort 1.1a |
| Output Signal | HDMI |
| Performance | |
| Audio Specifications | 5.1 Surround Sound |
| Maximum Digital Resolutions | 1920x1200 |
| Wide Screen Supported | Yes |
| Connector(s) | |

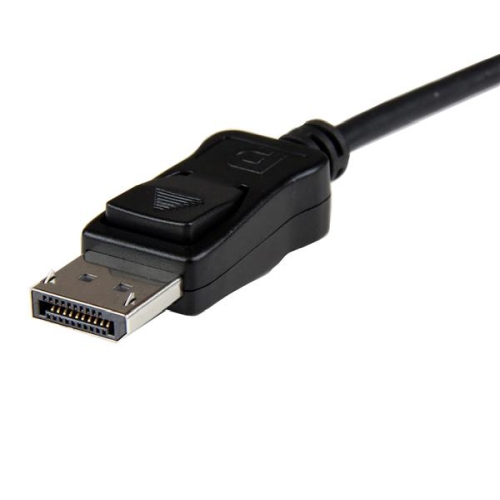

| Connector A | 1 - DisplayPort (20 pin) Latching Male |

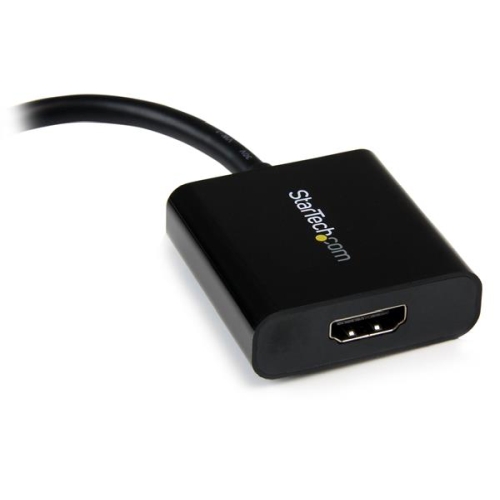

| Connector B | 1 - HDMI (19 pin) Female |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Physical Characteristics | |
| Color | Black |
| Product Height | 0.6 in [15 mm] |
| Product Length | 8.3 in [210 mm] |
| Product Weight | 1.2 oz [35 g] |
| Product Width | 1.8 in [45 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 1.6 oz [45 g] |
| What's in the Box | |
| Included in Package | 1 - DisplayPort to HDMI Active Adapter |
